Honda Accord Euro 2012 – Window Relearn Procedure
The auto up function on any of the 4 windows can alter if there has been a repair, a new window regulator and sometimes a battery that has been disconnected for a long time. the symptom is that when the auto up function is pressed the window goes all the way up hits the top and goes back down an inch and a bit, the first thing that should be tested before calibrating or relearning is the pinch function, during the auto up function, put your hand on the window to stop it moving it should bounce down, this will let you know that the circuitry is working, if this function works you are ready to carry out window relearn procedure.
##
# Relearn Procedure late models,
The procedure can only be carried out using a scan tool,

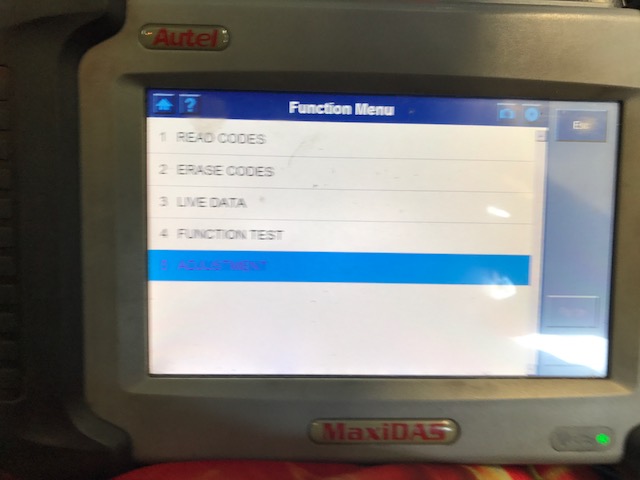

go into body module and find adjustment,

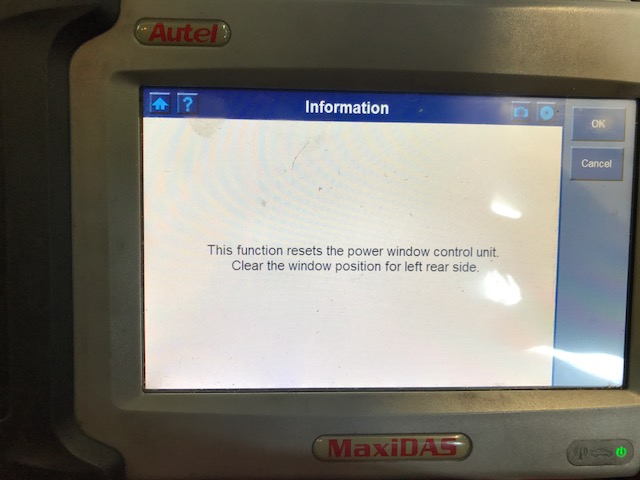

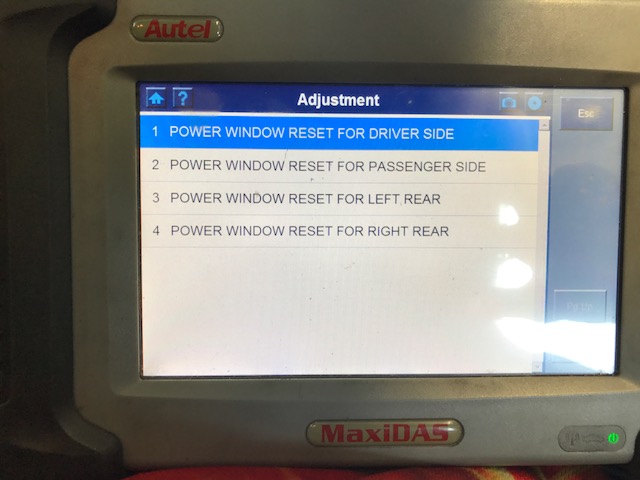

find the window that is affected in the list and carry out the procedure with the tool
# Relearn Procedure early models
THIS THE PROCEDURE THAT EVERY ONE LISTS, So far we have not had it to work, maybe we have only encountered the late version, not sure.
Honda – Resetting the Power Window Control Unit
Resetting the driver’s power window is required when any of the following have occurred
Power window regulator replacement or repair
Driver’s (or front passenger’s) door glass replacement or repair
Power window motor replacement or repair
Window run channel replacement or repair
Power is removed from the power window control unit while the power window timer is
ON
1. Turn the ignition switch ON
2. Move the driver’s (or the front passenger’s) window all the way down by using the
driver’s window DOWN switch
3. Open the driver’s door
Note Steps 4 to 7 must be done within 5 seconds of each other
4. Turn the ignition switch OFF
5. Push and hold the driver’s (or the front passenger’s) window DOWN switch
6. Turn the ignition switch ON
7. Release the driver’s (or the front passenger’s) window DOWN switch
8. Repeat steps 4 to 7 three more times
9. Wait 1 second
10.Confirm AUTO UP and AUTO DOWN do not work. If AUTO UP and DOWN work, go
back to step 1
11.Move the driver’s (or the front passenger’s) window all the way down by using the
drivers (or the front passenger’s) window DOWN switch
12.Pull up and hold the driver’s (or the front passenger’s) window UP switch until the
window reaches the fully closed position, then continue to hold the switch for 1
second
13.Confirm that the power window control unit is reset by using the driver’s (or the front
passenger’s) window AUTO UP and AUTO DOWN functions
If the window still does not work in AUTO, repeat the procedures several times, paying close
attention to the 5 second time limit between steps
If the window still does not work, refer to the master switch input test.
