# 🧪 Subaru WRX Power Window Diagnostic Guide (2017 RHD)
10/09/2025 | Author: admin | No comments | Categories: Subaru | Tags: ARC compliance • AUTO DOWN pulse • AUTO UP pulse • Auto window reset • Diagnostic card • ERP fault mapping • Ground fault suppression • IC-controlled window motor • LIN bus logic • Master switch CPU • Motor connector B134 • Motor connector B135 • Motor connector B136 • Motor connector B137 • Multiplexed window system • Oscilloscope testing • Pin 14 fault • Power window fault • Rear window failure • RHD Subaru • Subaru electrical diagnostics • Subaru service manual • Subaru wiring diagram • Subaru WRX • Technician overlay • Vehicle electrical fault • Window regulator • Workshop training • Workshop troubleshooting • WRX 2017
# 🔁 Reset Procedures (Start Here)
- Ignition ON
- Open window halfway
- Fully close using UP switch
- Hold UP for 1 second
- Test AUTO DOWN
- AUTO UP 10 times (window closes then opens slightly)
- Confirm AUTO UP stops responding
- Perform Reset A
- Retest AUTO UP/DOWN
# ⚠️ Key Notes Before Testing
- All switches are CPU-controlled — never probe with a standard test light
- Pulse durations:
- AUTO UP ≈ 130 ms
- AUTO DOWN ≈ 300 ms
- Manual hold = steady voltage while pressed
- Ground faults can suppress pulses — verify ground integrity before chasing signal loss
- Use a powered oscilloscope across motor terminals or switch outputs
# 🧠 Ground Fault Suppression – How It Stops Pulses
In this CPU‑controlled system, the motor ground pin is part of the control reference. If the CPU detects an abnormal ground condition, it will inhibit or instantly cut the UP/DOWN output.
### Fault Modes
Fault TypeElectrical EffectCPU ReactionScope ResultHigh‑resistance / open groundGround floats above 0 V under loadCPU inhibits output entirelyFlat trace (no pulse)Hard short to groundOutput driver sees permanent lowCPU detects overcurrent and shuts downVery brief blip or none at all
### Scope Examples
Normal AUTO UP (~130 ms pulse) ⬜────────▮▮▮▮▮────────
Normal AUTO DOWN (~300 ms pulse) ⬜────────█████████────────
Suppressed by open/high‑resistance ground ⬜──────────────────────── (flat line)
Suppressed by hard short to ground ⬜─▏────────────────────── (tiny blip, then flat)
Tip: Always scope at D3 first. If no pulse, check ground continuity and load‑test it before suspecting the master switch.

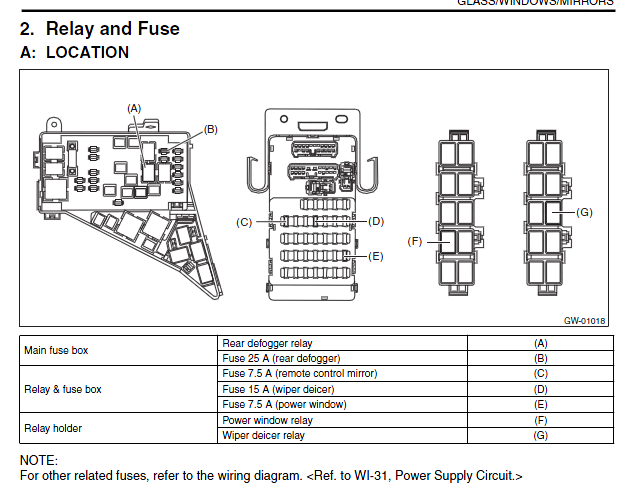

## 🔧 Master Switch (RHD Driver’s Side)
# 🧠 Diagnostic Implications
- Each window has dedicated UP/DOWN lines from the master switch to D3 — no shared “Pin 14” logic line in this model
- Rear windows have a common/control feed (G/B) per side, but not shared between sides
- If a single UP/DOWN line is shorted or grounded, only that window fails
- If the master switch CPU detects a fault, it may disable all outputs (full system lockout)
- Ground faults on motor ground pins can suppress pulses entirely
# 🔍 Oscilloscope Setup Tips
- Trigger: rising edge, ~8–10 V
- Timebase: 200 ms/div for AUTO pulses
- For manual hold: widen timebase and look for steady high while pressed
- Always back-probe at D3 first — isolates door harness from body harness faults
# 🧩 Fault Logic Summary
- Rear window fault (e.g., grounded Pin 14) can suppress all window functions
- Master switch CPU may enter protection mode
- No pulses visible on oscilloscope if logic is suppressed
- Front motors are independently wired—failures are isolated unless CPU halts
